DC-DC Buck Power Converters: A Comprehensive Guide to Step-Down Voltage Regulation

In the world of power electronics, DC-DC buck power converters stand as one of the most fundamental and widely-used circuits for voltage regulation. These versatile devices have become indispensable in countless applications, from smartphone chargers to industrial power supplies, offering efficient step-down voltage conversion that meets the demanding requirements of modern electronic systems.

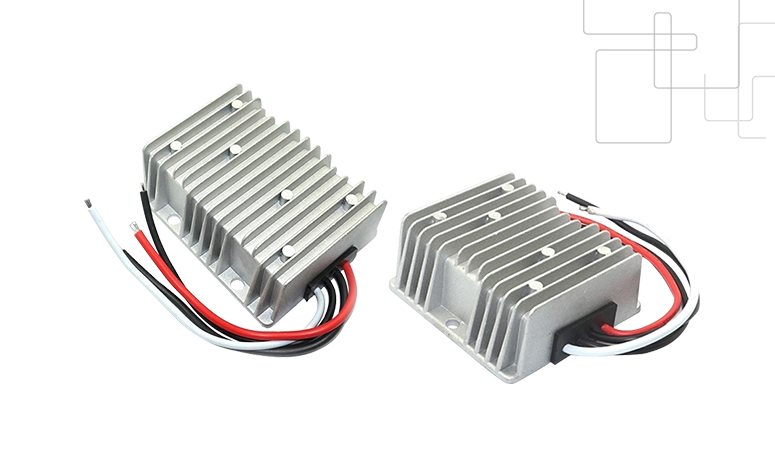

Understanding DC-DC Buck Power Converters

A DC-DC buck power converter is a type of switching regulator that steps down or “bucks” a higher input voltage to a lower, regulated output voltage. Unlike linear regulators that dissipate excess voltage as heat, buck converters use switching techniques to achieve high efficiency, typically ranging from 85% to 95%. This efficiency advantage makes them the preferred choice for battery-powered devices and applications where thermal management is critical.

The fundamental principle behind these converters involves rapidly switching a power transistor on and off, controlling the average voltage delivered to the load. During the switch-on period, energy is stored in an inductor, and during the switch-off period, this stored energy is released to the load through a freewheeling diode. This process creates a stepped-down DC output voltage that can be precisely controlled through pulse-width modulation (PWM).

Circuit Topology and Key Components

The basic topology of DC-DC buck power converters consists of several essential components working in harmony. The heart of the circuit is a high-frequency switching transistor, typically a MOSFET, which controls the energy flow from input to output. An inductor serves as the energy storage element, smoothing the switched voltage into a continuous current flow. A freewheeling diode provides a current path when the switch is off, preventing voltage spikes and maintaining continuous current flow through the inductor.

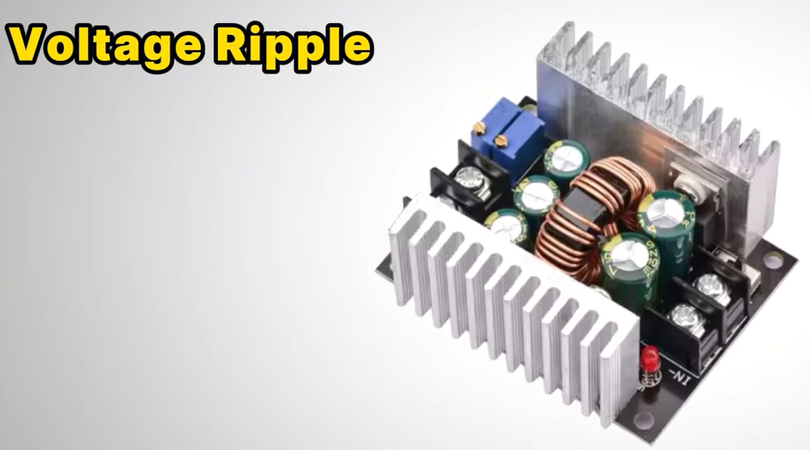

The output filter, usually comprising a capacitor in parallel with the load, reduces voltage ripple and provides instantaneous current during load transients. A feedback control circuit monitors the output voltage and adjusts the switching duty cycle to maintain regulation. This closed-loop control ensures stable output voltage despite variations in input voltage or load current.

Modern implementations often replace the freewheeling diode with a synchronous rectifier MOSFET, creating what’s known as a synchronous buck converter. This modification reduces conduction losses and improves overall efficiency, particularly at higher switching frequencies and lower output voltages.

Advantages of Buck Converter Technology

DC-DC buck power converters offer numerous advantages over alternative voltage regulation methods. Their high efficiency translates directly into reduced power consumption and heat generation, making them ideal for portable electronics where battery life is paramount. The switching nature of these converters allows for excellent regulation across wide input voltage ranges and varying load conditions.

The compact size achievable with high-frequency operation makes buck converters suitable for space-constrained applications. Unlike transformers used in isolated converters, buck converters don’t require magnetic isolation, simplifying the design and reducing component count. Additionally, the output voltage can be precisely controlled through digital or analog feedback mechanisms, enabling programmable power supplies and dynamic voltage scaling.

The fast transient response of well-designed buck converters makes them suitable for powering sensitive digital circuits that experience rapid load changes. This characteristic is particularly important in microprocessor applications where sudden changes in computational load require immediate power delivery adjustments.

Applications Across Industries

The versatility of DC-DC buck power converters has led to their adoption across numerous industries and applications. In consumer electronics, they power everything from smartphones and tablets to laptops and gaming consoles. The automotive industry relies heavily on these converters for electric vehicle battery management systems, LED lighting, and various electronic control units.

Industrial applications include motor drives, programmable logic controllers, and factory automation systems. Telecommunications infrastructure depends on buck converters for base station power supplies, network equipment, and data center servers. The renewable energy sector utilizes these converters in solar panel optimizers, wind turbine controllers, and energy storage systems.

Medical devices represent another critical application area, where the reliability and precision of DC-DC buck power converters ensure safe operation of life-critical equipment. From portable diagnostic devices to sophisticated imaging systems, these converters provide the stable, regulated power required for medical electronics.

Design Considerations and Challenges

Designing effective DC-DC buck power converters requires careful consideration of multiple factors. Switching frequency selection involves balancing efficiency, component size, and electromagnetic interference (EMI). Higher frequencies enable smaller passive components but may increase switching losses and EMI concerns. The choice of switching frequency typically ranges from tens of kilohertz to several megahertz, depending on the application requirements.

Inductor selection is crucial for proper operation and performance. The inductor value affects current ripple, transient response, and continuous versus discontinuous conduction mode operation. Too small an inductor may lead to excessive ripple current and potential discontinuous operation, while too large an inductor may slow transient response and increase cost and size.

Control loop design presents another challenge, requiring stable operation across all operating conditions while maintaining fast transient response. Compensation techniques must account for the converter’s inherent right-half-plane zero in current mode control and ensure adequate phase and gain margins for stability.

Thermal management becomes critical in high-power applications, requiring careful PCB layout, component selection, and potentially active cooling solutions. The switching losses in the power MOSFET and conduction losses in the inductor and other components must be carefully calculated and managed.

Future Trends and Innovations

The evolution of DC-DC buck power converters continues with advancing semiconductor technologies and control techniques. Wide bandgap semiconductors like gallium nitride (GaN) and silicon carbide (SiC) promise higher switching frequencies and improved efficiency. These materials enable smaller, more efficient converters operating at frequencies previously unattainable with silicon devices.

Digital control is becoming increasingly prevalent, offering programmability, advanced control algorithms, and telemetry capabilities. Digital controllers enable adaptive control techniques, real-time optimization, and communication with system-level power management units.

Integration trends are leading to complete power management solutions on single chips, incorporating multiple buck converters, LDO regulators, and control functions. This integration reduces board space, simplifies design, and improves overall system reliability.

Conclusion

DC-DC buck power converters represent a cornerstone technology in modern power electronics, offering efficient, compact, and versatile solutions for step-down voltage regulation. Their continued evolution through advanced semiconductors, control techniques, and integration approaches ensures their relevance in emerging applications from electric vehicles to artificial intelligence accelerators. Understanding the principles, advantages, and design considerations of these converters is essential for engineers working in virtually any field involving electronic systems. As power density requirements continue to increase and efficiency standards become more stringent, DC-DC buck power converters will undoubtedly continue to play a vital role in shaping the future of power electronics.
